PLEASE NOTE: Camera types are listed here. If you are ordering a SSII, Bigfoot board or the LCD board with Field Marshal(time lapse), please look at what type of camera you are using so you will know what "type number" to select on your order. The LCD board standard program will run all of the cameras listed.

Camera Types:
Type 1: Sony P41/W1/W5/W7/W290 - VERY IMPORTANT: Use Type 1 for the Sony P41 only if you are using standard Memory Stick Pro. If you are using Memory Stick Duo with Adapter then you need to use Type 2 for the Sony P41.

Type 2: Sony P32/P52/P100/P150/P200/W35/W55,Pentax E50/E90,Nikon L10/L11/L14

Type 3: Sony S40/S600/W200/W220/W230, Samsung A503, Fuji J10

Type 4: (ON/OFF) - Olympus D370/380, Panasonic

Type 5: (ALWAYS ON) - Olympus D370/380, Nikon and Canon SLR Cameras


#1 - Select the control board

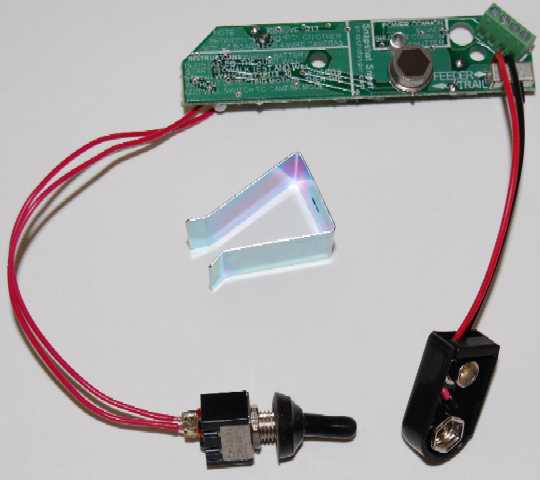

SSII Board


SSII Controller Board
Board comes with stand-offs and HPWA Lens NOTE: Battery not included. Very simple to opertate, and PICAXE COMPATABLE!, To see how to program your own
Click here: Board Info
Click here: Programming Info
Click here for:
Free Sample Programs


Black/white lens - IN STOCK
Black/black lens - IN STOCK
Camo/white lens - IN STOCK
Camo/black lens - IN STOCK

Quantity and Lens Color
Which Camera Type?
NOTE: Battery not included.

Battery for SSII Controller Board Only
This power packed 1/2AA 3.6V 950mAH battery will run your SSII for a long time. We estimate over 2 years with typical use.

ONLY AVAILABLE IN US LOWER 48 STATES The law has changed and these batteries now can only be shipped in the US. (These batteries are Tadiran part #: TL-5101/S, or CR2 batteries will also work).

IN STOCK
$5.00


LCD Board


Sensor on BACK board shown, See Sensor on FRONT here.

NEW " Field Marshal" feature. Combines time lapse and motion sensing!

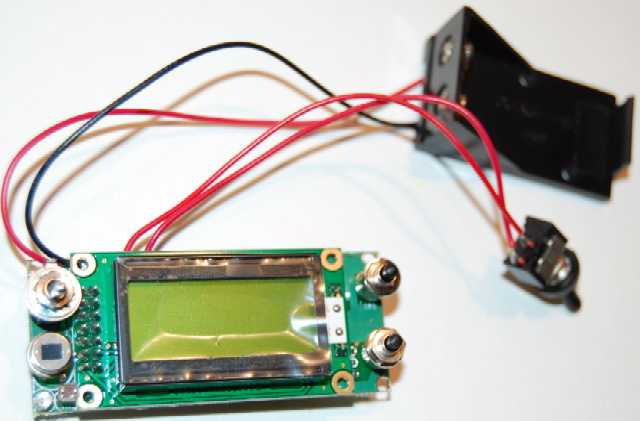

Snapshot Sniper Controller Board With LCD
Board comes with 9V battery holder and external "motion kill" switch with weather proof rubber boot. PACKED WITH FEATURES!
To see them
Click here: Board Info
Sensor on BACK board shown, See Sensor on FRONT here.


Note: If you want the "Field Marshal" time lapse feature combined with motion sensing, then select the camera type that it is for. If you want the advanced settings where the one board will work with all camera types, then select multi cam control (no "Field Marshal" feature).

IN STOCK

QUANTITY
SENSOR SIDE
Program Type?

2"x6" Plastic Control Panel (For Snapshot Sniper Controller Board With LCD) can be cut to fit your enclosure.

IN STOCK
$8.00


Bigfoot Board


Bigfoot Controller Board
For more information
click here: Bigfoot Board Info


IN STOCK

Program
Still Camera?
OR, Video Camera?

Bigfoot Sister Board
Small Size Only 1/2" by 1 1/4"
Designed to connect to Programmed Bigfoot Board when using an Ir Array, Sound Amp, Light or Slave Flash. One Sister Board for each accessory added to your build.

IN STOCK
$5.00

HPWA/Bigfoot Easy Alignment Mount
For use with the High Performance Wide Angle Fresnel Lens(HPWA). Comes with 3/8 standoffs and Screws.

IN STOCK
$4.00


#2 - Select the motion sensor lens (Fresnel Lens) for the control board (Already comes with the SSII)

0.9 Focal length High Performance Wide Angle Fresnel Lens (HPWA)
FOR SENSOR ON BACK BOARD
Intall SPECS
NOTE: If you want to use the day/night feature of the SS LCD Board, then you must use a white lens.

Black/white lens - IN STOCK
Black/black lens - IN STOCK
Camo/white lens - IN STOCK
Camo/black lens - IN STOCK

Color Options

0.9 Focal length Wide Angle Fresnel Lens

IN STOCK
$3.00

0.65 Focal length Narrow Detection Zone, Long Range Fresnel Lens

IN STOCK
$3.00


#3 - Select the type of connection between the control board and the camera.

Servo Connector
30 gauge camera side
26 gauge controller side

IN STOCK

NUMBER OF WIRES

Servo Connector For Adding External Power
2 of the wires will be 28 gauge Camera side for the external power and the rest will be 30 gauge.
26 gauge controller side

IN STOCK

NUMBER OF WIRES

Custom made Shutter Assembly is used with a servo connector for hacking Sony P32, P52, P41 and others. They make hacking these cameras safe and easy... don't do without them.

IN STOCK
$1.50

Stereo Jack, 3' stereo cable with plug and ribbon cable pre soldered to jack. (For modifying Sony P41 cameras).
How to modify the: Sony DSC-P41

IN STOCK
$12.00

SLR CABLE - 2.5mm 3 conductor stereo plug with 3 foot cable. (For use witrh SLR cameras that have a shutter release port).

IN STOCK
$5.00


#4 - Select the waterproof case

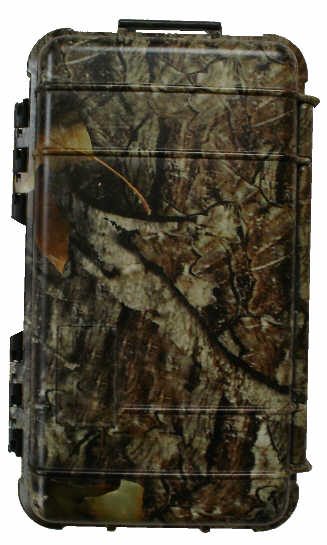

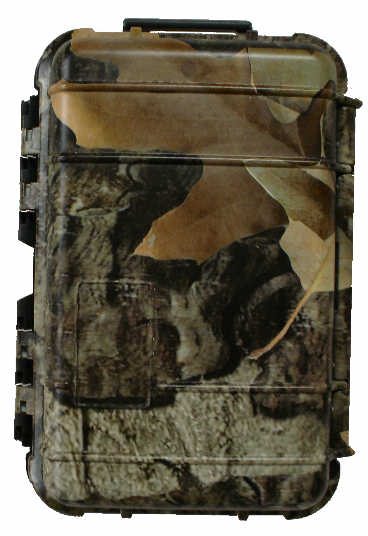

Timber Ghost Camo Cases and black cases
are currently available for the Pelican 1020, 1040 and 1060 and the Otter Box 3000 cases. The camo on these cases is the best quality we've seen. Very nice!


ATTENTION: CAMO 1020 cases are OUT OF STOCK.

SELECT CASE SIZE

Oversized Neoprene Sponge Rubber Rope Replacement Seals
Use for replacing the original seal for Pelican Cases and Wal-Mart Cases
Also sold in bulk...10 ft minimum please

IN STOCK

SELECT CASE SIZE

#5 - Select the proper stand-offs and screws for the lens, case and control board that you'll be using (these already come with the SSII)

1 set of Stand-offs and mounting screws.
It is very important that you select the correct stand-offs. These set the focal length of the Fresnel lens (lens for motion sensor). The wrong stand-off length can cause falsse triggers, or poor sensitivity.

IN STOCK

Select Set
Which Board?
Sensor Lens
Which Case?

#6 - Select the lenses for in front of the camera

1-1/4 (1.24") Round Glass 1mm thin

IN STOCK
$2.50

1-1/4 (1.24") Round AR(Anti Reflective) Glass 1mm thin

IN STOCK
$5.00

"Flash Extender" Lens
This will extend the flassh distance 5-10 feet. Can create a "spotlight effect" where the edges are darker that the center of the picture. If you prefer higher quality pictures, then use glass, if you don't mind the darker corners and want a little more flash distance, go with this lense in front of your camera flash.

IN STOCK
$3.00


#7 - Select option to secure the unit

Stainless Security Tube
These tubes accept the 5/16" Python Cable Lock below. To install the tube, drill a 3/8" hole and tap it in, then seal with GOOP.

IN STOCK
$4.95

Pelican Case Orientation-Size

Pelican Case Locking Bracket
IMPORTANT: You'll need the Python Cable Lock below to go with this bracket if you don't already have one.

For 1010 Case IN STOCK
For 1020 Case OUT OF STOCK .
For 1040 Case IN STOCK.

Select Case Size

Python Cable Lock This is a "must have" to protect your system from theft.

IN STOCK

Quantity

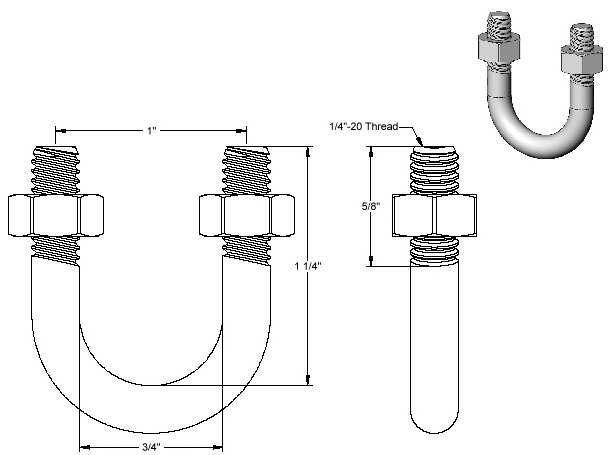

1 Pair of Black-Oxide Steel U-Bolts (Should be painted to prevent rusting).
U-Bolt SPECS

IN STOCK
$3.00


#8 - Select foam for in front of and behind camera (be sure to not get too thick so that the lid will close good. Too thick can cause the case seal to fail).

Eva Foam WITH adhesive backing

IN STOCK

SELECT SIZE

Eva Foam with NO adhesive backing

IN STOCK

SELECT SIZE

Camera Flash Gaskets
To be used for flash seals and many other camera building uses also. 4 by 2 1/2 - flash and shutter holes are not cut, you cut those yourself

IN STOCK

THICKNESS

#9 - Miscellaneous Items

Replacement Lens For SSII
This lens contains the mounting bracket for the SSII, so this is what you need to replace a damaged lens for the SSII board.

Black/white lens - IN STOCK
Black/black lens - IN STOCK
Camo/white lens - IN STOCK
Camo/black lens - IN STOCK

Color Options

Assorted Battery holders
Choose the battery holder(s) to meets your needs. These are commonly used for adding external batteries to the camera for longer time in the field.

IN STOCK

SELECT TYPE

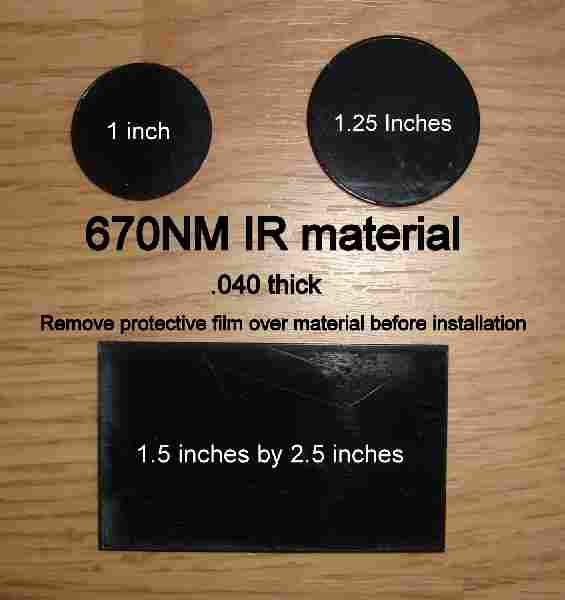

IR material for cameras converted for infrared setups.
670NM .040 thick allows the brightest pictures while still blocking most of the visible light.

IN STOCK

SELECT SIZE

Mounting Tape
Use this double sided mounting tape for lens mounting. Completely waterproof seal. Replaces messy smelly glues. Is not electrically conductive. Enough to complete several cams.

1.6 inches x 2 feet
IN STOCK
$5.00

Quick pull 1/8 X 6' ratchet rope to quickly attach your camera
Includes 6 foot Rope, S-Hook and Ratchet Hook

IN STOCK
$5.00

Extra picaxe o8M chip for custom programs on the Simple Sniper.

IN STOCK

Select Preprogram (can be programmed over)

Chip with latest standard or Field Marshal programming for the LCd board.

IN STOCK

Select Program

Use the buttons to order on line, or send a check or money order to:
Snapshot Sniper LLC
3 Sherwood Park
Duncan, OK 73533
